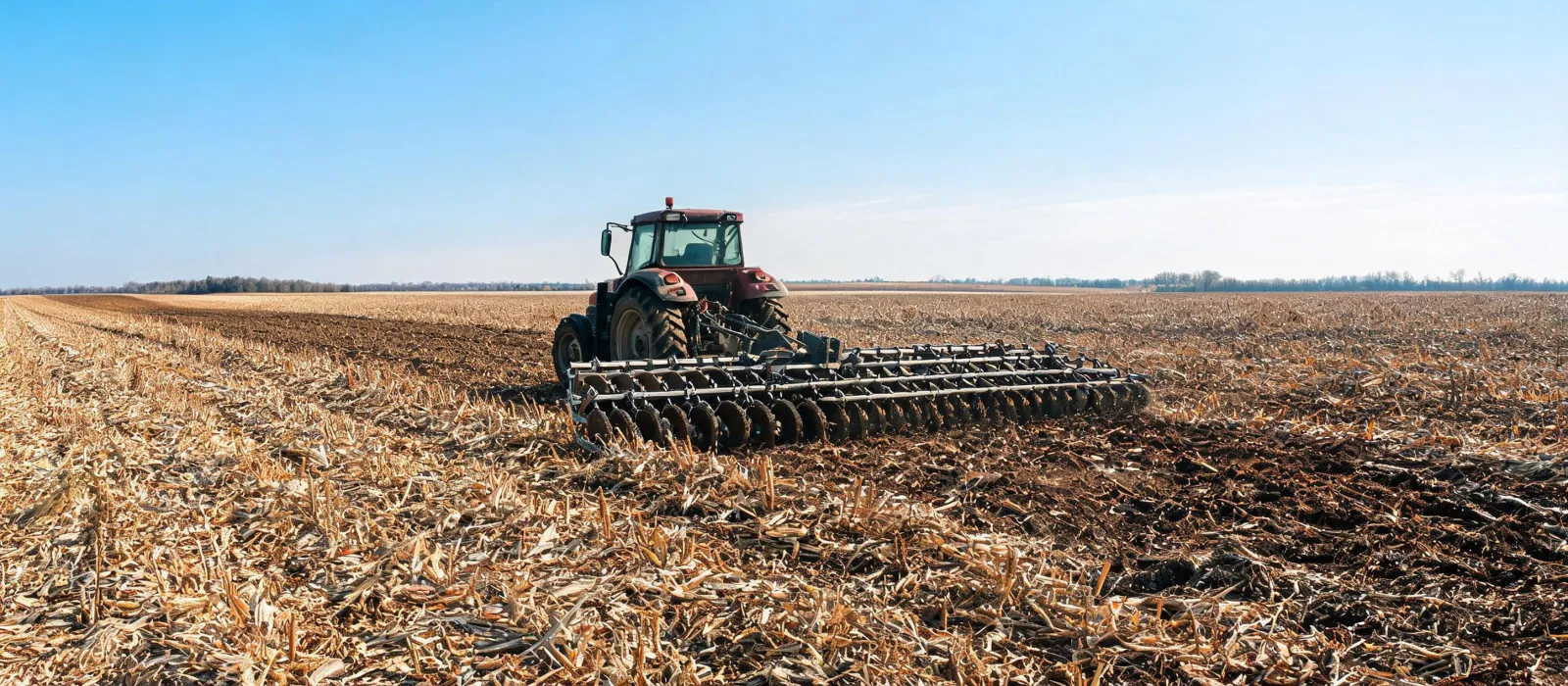

Offset disc harrow in agricultural field

Application / field constraints

Offset disc harrow requirements by field application

A purchasing specification starts with the soil and access conditions. Record the task, tractor and transport envelope before asking a factory to propose an offset arrangement.

Three environments, different confirmation questions

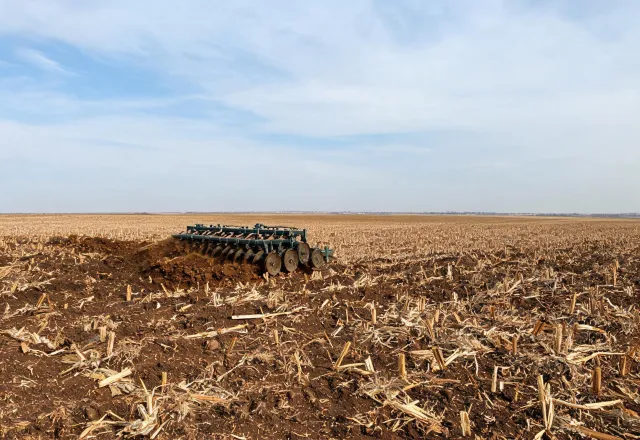

Broadacre residue incorporation

Describe residue type, surface cover, moisture and the planned pass sequence. Ask about gang angle adjustment, disc diameter, spacing and frame weight. A heavier assembly may aid penetration but increases draft demand and transport burden; a lighter one can suit a smaller tractor yet leave the required finish unresolved.

Request a model-specific operating recommendation based on the actual soil. A claimed working width cannot be converted into acres per hour without speed, turns, overlap and interruptions.

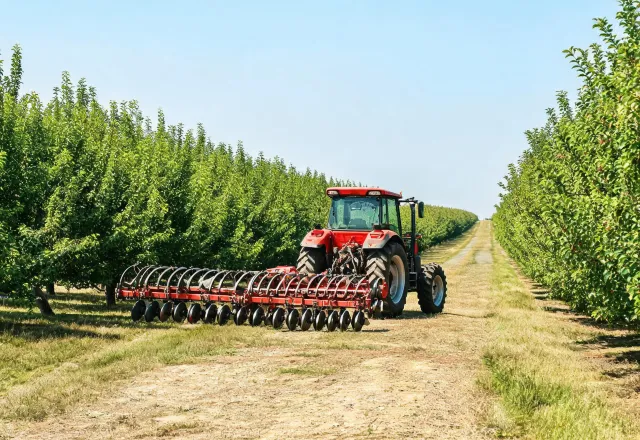

Orchard and vineyard interrows

Provide row spacing, slope, headland turning room, irrigation obstacles and trunk clearance. Offset reach must be checked against the tractor path and lifting or towing geometry. Confirm whether the proposed assembly can be transported safely through gates; do not infer fit from a photograph.

Include the crop-management objective so the manufacturer can flag operating limits. Work near roots and irrigation lines needs site-specific assessment beyond a general equipment quotation.

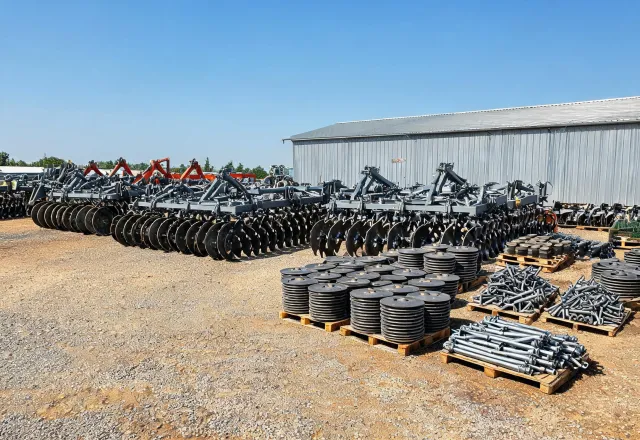

Dealer and contractor fleets

Split the request by tractor class and hitch arrangement. Record engine power in hp/kW, drawbar details or three-point hitch category and hydraulic connections. Standardizing parts may simplify service, while different frame sizes can better match individual field jobs. Compare the parts list rather than assuming one common bearing fits every assembly.

Ask for assembly instructions, wear-part drawings, packing dimensions and named warranty responsibilities. Destination requirements and local transport rules need confirmation for each offered model.

Four checks before accepting an alternative

01Soil and residue

02Power and traction

03Interface and clearance

04Parts and delivery

These numbers describe a review sequence, not project counts or performance claims. For a field trial, agree the soil moisture record, working depth target, measured width, pass count and inspection criteria with the supplier before interpreting results. Keep the same conditions when comparing configurations.

Review inquiry options with those constraints in mind. Factory availability, sample terms, MOQ and seasonal delivery remain subject to written confirmation.

Explain the application behind your order

Tell us the field conditions and the compatibility details that each offset disc harrow offer must satisfy. Factory matching starts with this information; no catalog listing establishes suitability for your farm.

Specify product, quantity and US delivery destination.
State the seasonal arrival target and required documents.
Add an optional budget and supplier preference.

First name

Last name

Work email

Company

Phone (optional)

Procurement requirements

Specify blade diameter, spacing, axle dimensions and bearing references for replacement parts. Explain any PTO horsepower requirement separately; many disc harrows are draft implements. Do not send confidential drawings here.
